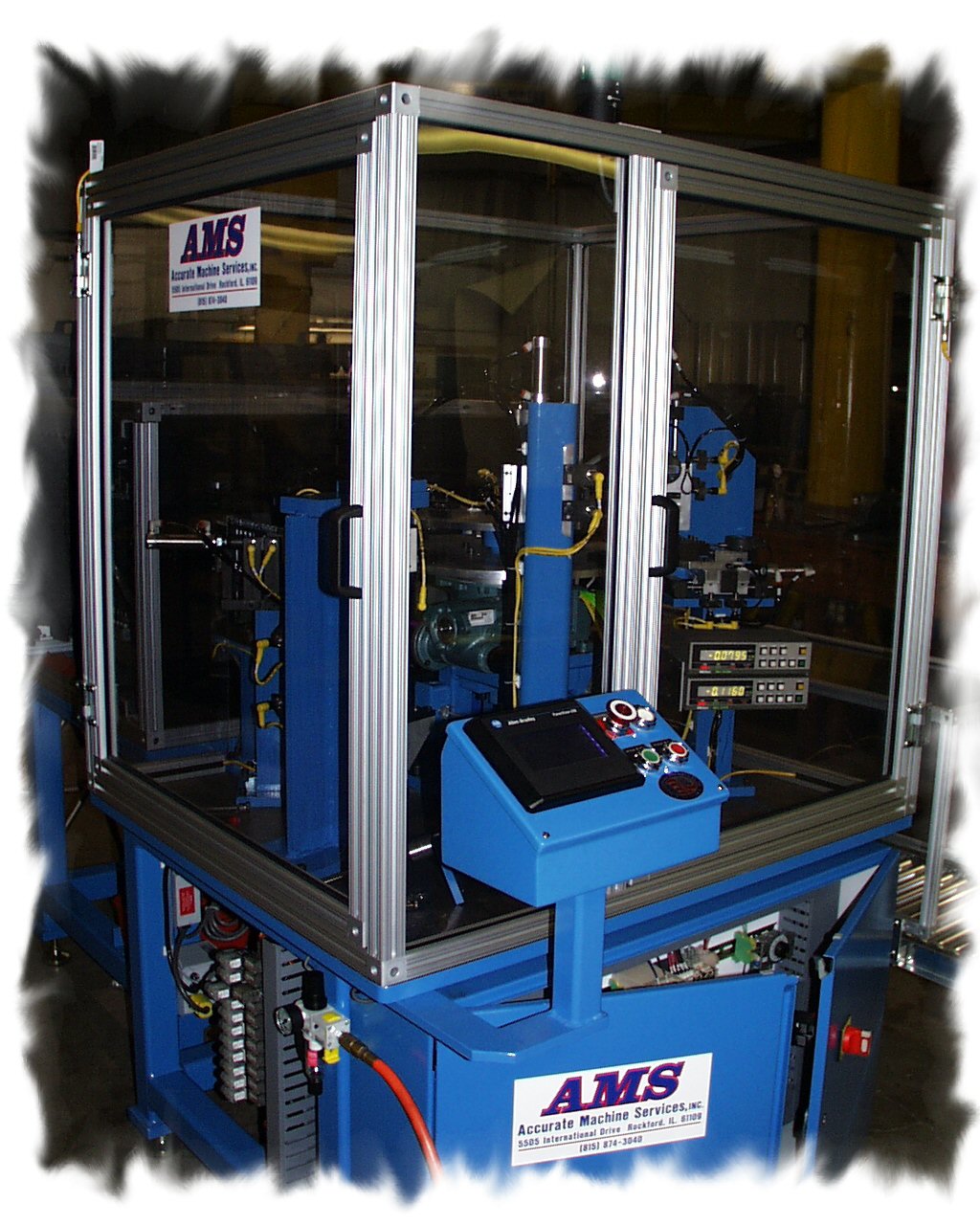

Caliper Brake Bolt Inspection, Operater Side

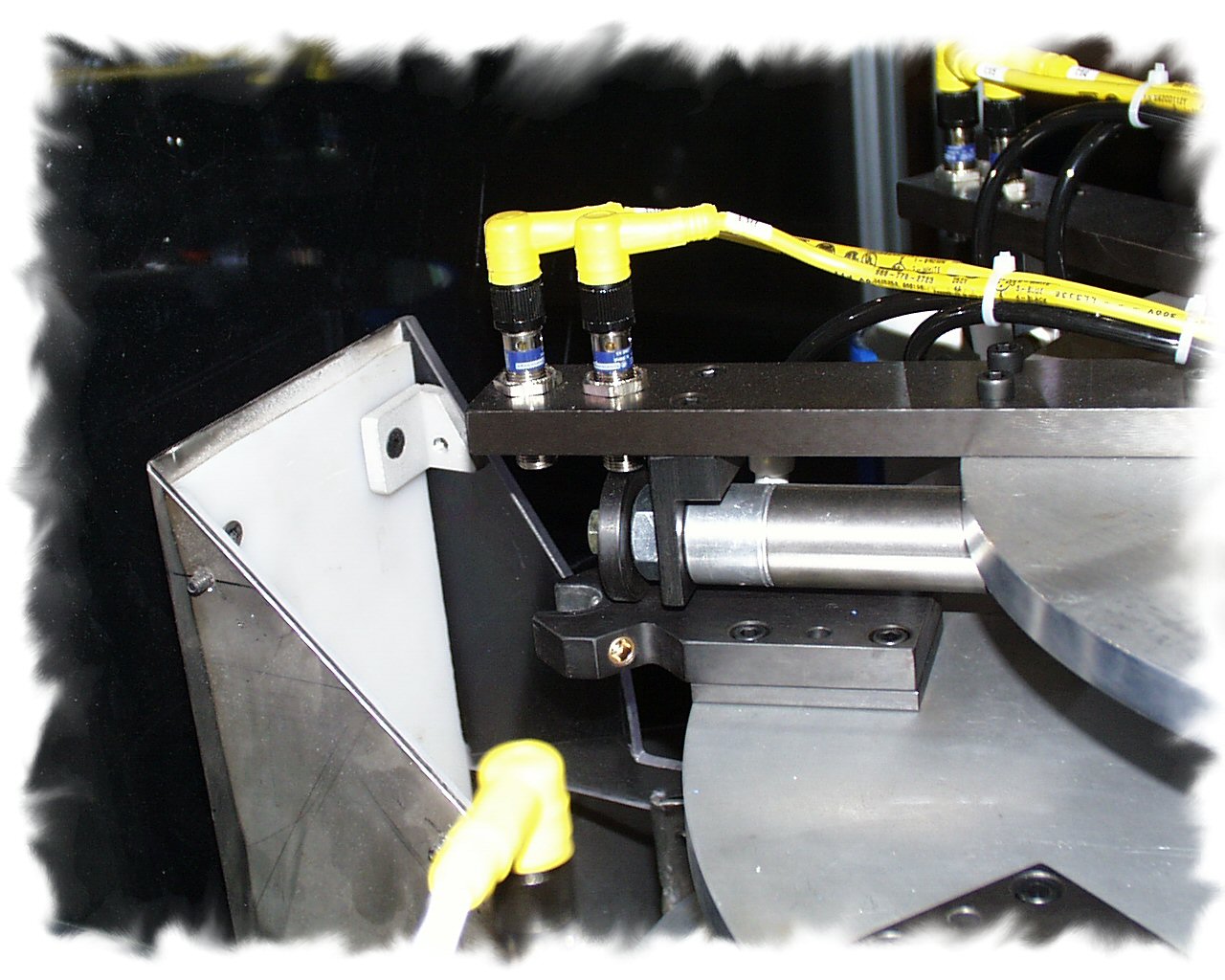

Station #1 Load Bolts To Index Dial

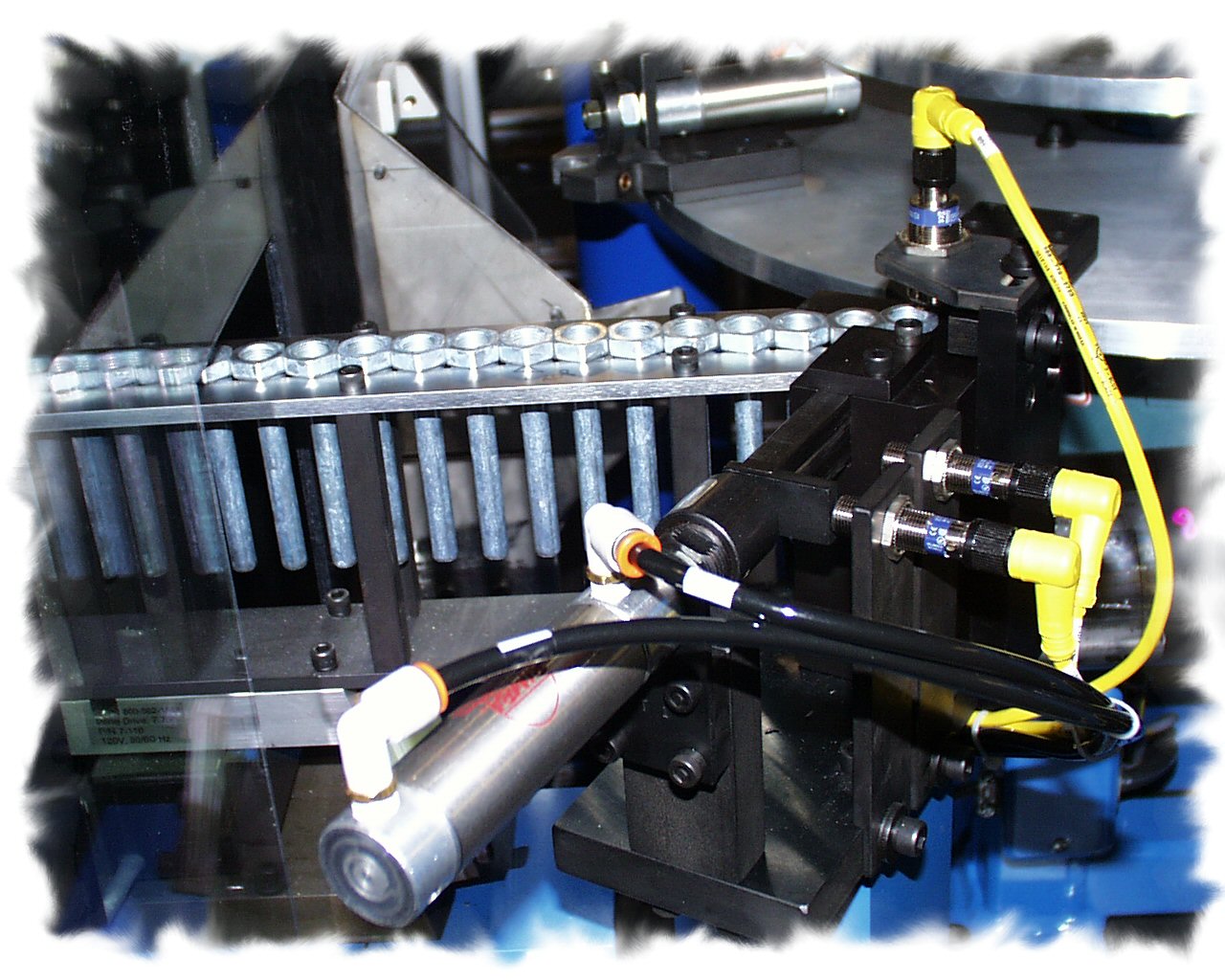

Station #2 Bolt straightness check,

Calibrated precision gage tooling, monitors bolt profile

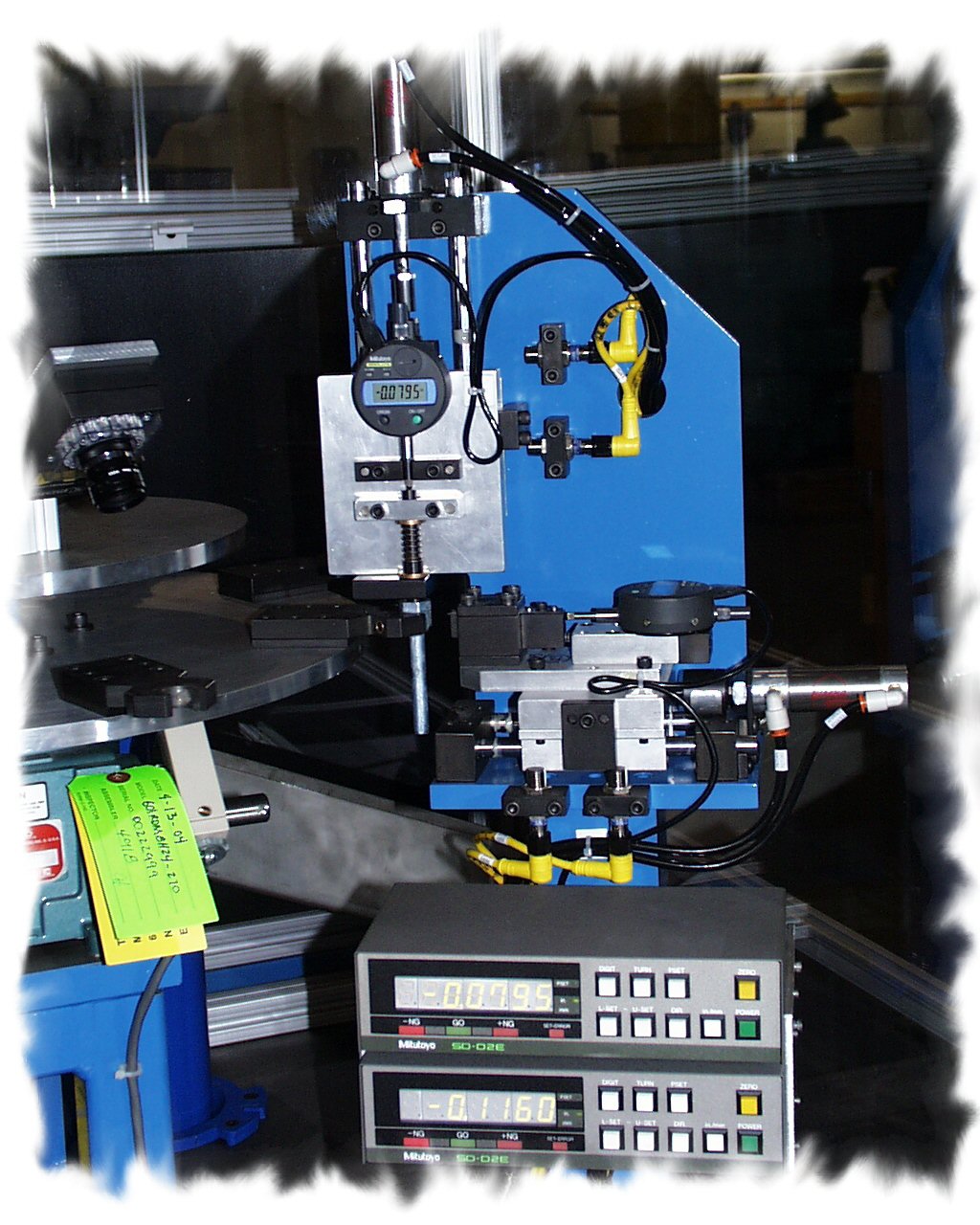

Station #3 Head form check,

Monitors head diameter.

Station #4 Vision inspection of internal threads

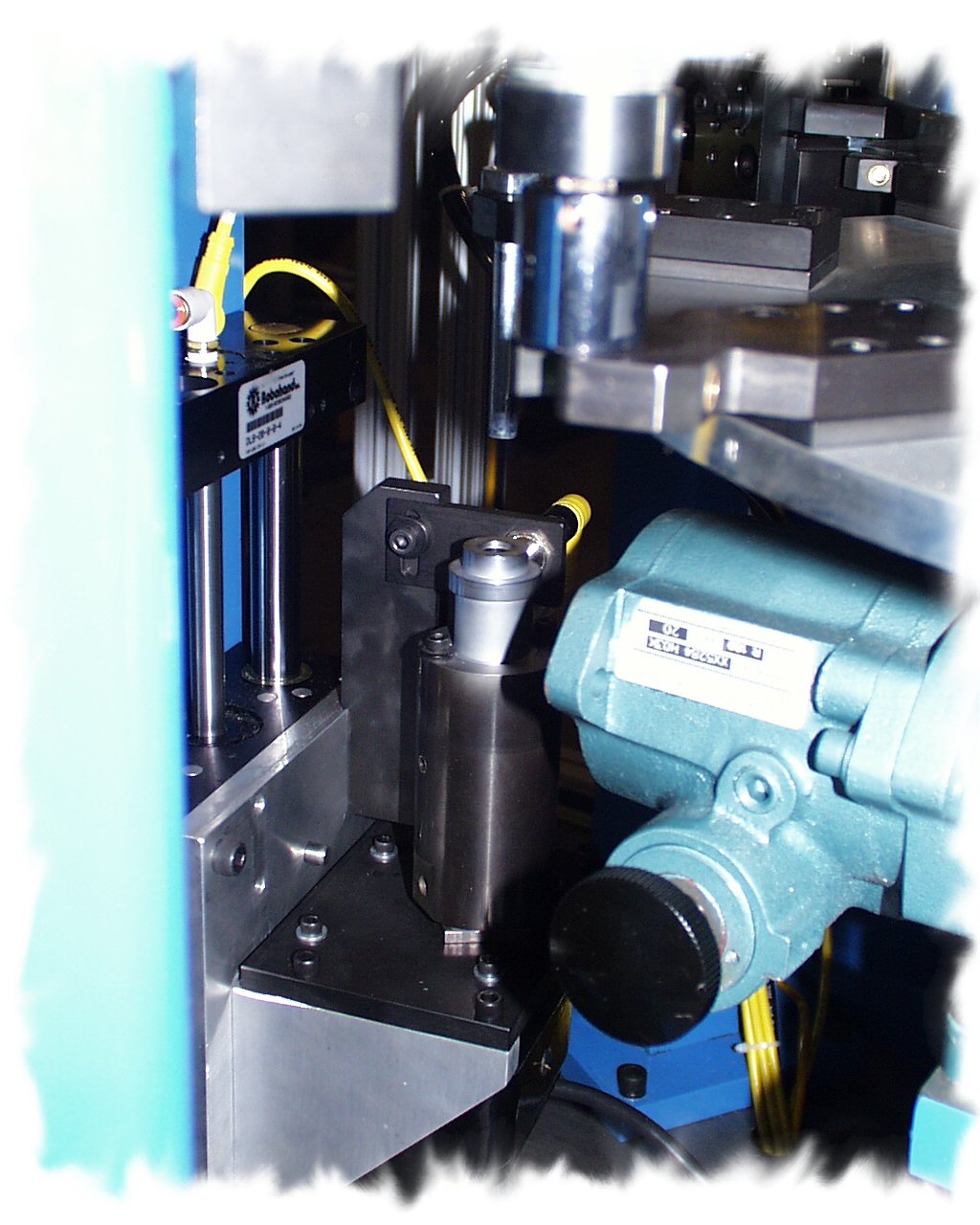

Station #5 Physical groove depth measurement,

Internal thread diameter and depth check.

Stations #7 Reject parts unloaded into contained red bin.

Station #8 Good parts unloaded, Counted and packaged into totes

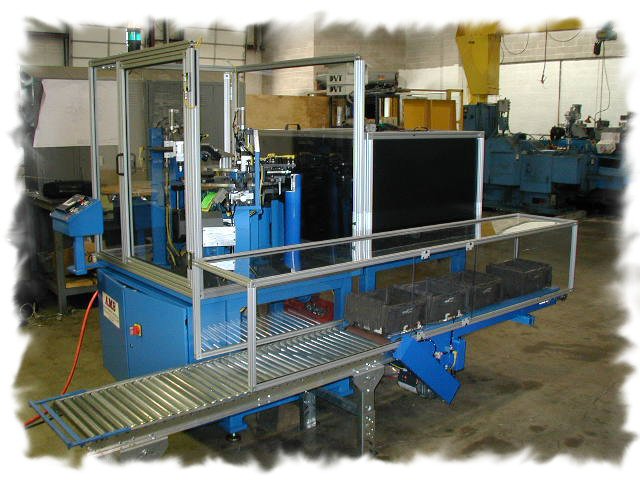

Conveyor replaces tote when full and restarts Inspection Machine.
